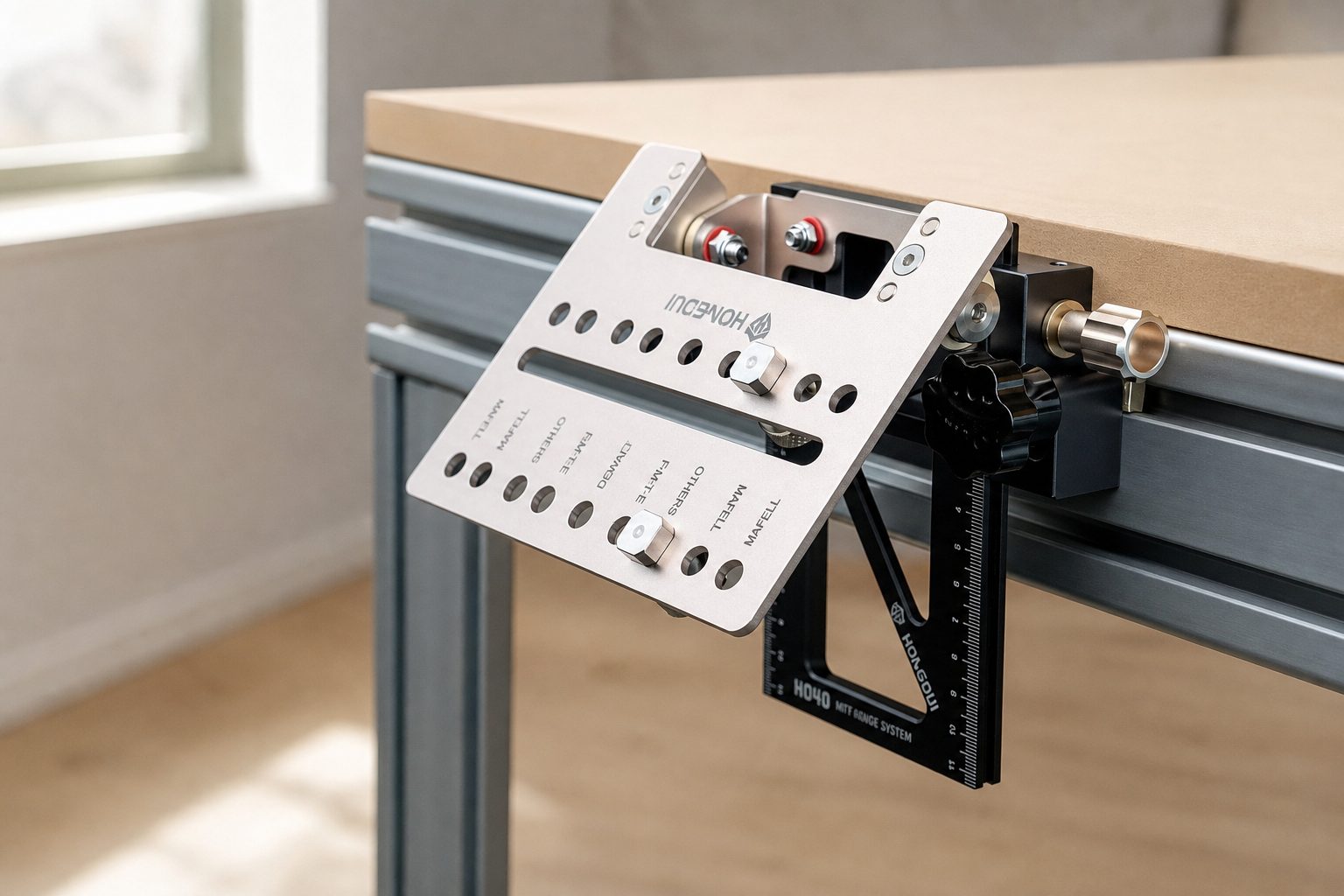

HONGDUI H040 is a precise quick-mount hinge system for guide rails and woodworking benches
The HONGDUI H040 BenchTop Quick Mount Hinge System is a specialized woodworking jig designed to quickly attach a guide rail to a workbench. Its aim is to create a repeatable system for precise crosscuts or routing without having to set up and clamp the guide rail separately for every cut.
pandealia.euThe best coupons from Chinese stores, prices and price history in one place.HONGDUI H040 BenchTop Quick Mount Hinge System is a specialized woodworking jig designed to quickly attach a guide rail to a workbench. Its aim is to create a repeatable system for precise crosscuts or routing without having to set up and clamp the guide rail separately for every cut.
The H040 is made primarily of precision-machined aluminum and stainless steel and is designed for rails with a T-slot on the underside.
What problem does the H040 solve?
With a handheld plunge saw and guide rail, the challenge is often positioning the rail consistently.
When making multiple identical cuts, the user has to:
- place the rail,
- measure,
- align,
- clamp,
- reset it after the cut.
The H040 hinge system turns the rail into a hinged component of the workbench. The user lifts it, inserts the material, lowers it, and cuts in the same reference position.
T-slot compatibility
The H040 is designed for guide rails with a T-slot on the underside.
User reports confirm compatibility with some Makita and Festool-type systems, for example.
Before purchasing, however, it is sensible to measure the specific rail, since “universal” in woodworking accessories does not mean automatic compatibility with every profile on the market.
Right- and left-hand configurations
The system can be configured for cutting from left to right or from right to left.
This is useful for different workbench layouts and depending on which side the user approaches the material from.
No separate long profile required
The manufacturer emphasizes that the system does not require a conventional, separate extruded profile spanning the full width of the table.
This simplifies installation and reduces the number of components around the work surface.
Support beneath the rail
The design includes an Under Rail Support stop, which stabilizes the guide rail in its working position.
For a precise cut, it is important that the rail repeatedly rests at the same height and in the same position when lowered.
Machined aluminum and stainless steel
The main mechanical parts are made of aluminum and stainless steel.
Independent user reviews repeatedly praise the machining quality. One user described the workmanship as exceptional; another said the system is easier to calibrate for Festool-type rails than previous solutions.
There was also criticism of a plastic component in one part of the assembly, and one review noted concerns about the product’s protection during shipping.
Who is the H040 for?
The H040 is not a universal tool for every DIYer.
It makes the most sense for users who:
- use a guide rail frequently,
- have a sturdy woodworking bench,
- make repeated, precise crosscuts,
- want to turn a track saw into a more efficient workstation.
If a user takes out the rail twice a year, they will get less use out of the investment.
Calibration matters more than installation alone
With a system like this, simply screwing the jig in place is not enough.
The rail needs to be adjusted so that it:
- is perpendicular to the reference edge,
- repeatedly rests in the same position,
- has no lateral play,
- maintains the correct height above the workbench.
Good calibration is the foundation of accuracy.
An advantage for batch work
The H040 can significantly speed up cutting a series of identical parts.
Instead of measuring every cut, you can use a stop on the table and the hinged rail.
The working principle is similar to that of a miter saw, but with the flexibility of a plunge saw and guide rail.
Main features of the HONGDUI H040
| Parameter | Characteristics |
|---|---|
| Type | hinged guide-rail system |
| Material | machined aluminum + stainless steel |
| Rails | models with a compatible underside T-slot |
| Orientation | left- or right-hand configuration |
| Use | guide rail, plunge saw, routing |
| Stabilization | support beneath the rail |
| Intended for | precise, repeatable workshop work |
What should you watch out for?
Compatibility with the specific guide rail is the most important consideration.
Before ordering, it is worth comparing the T-slot profile and mounting method. The H040 is a precision mechanical system, but it cannot resolve incompatible rail geometry.
Is the HONGDUI H040 worth it?
For a woodworker who often uses a plunge saw at the same workbench, the H040 can significantly improve convenience and repeatability.
Its main value is not “another accessory,” but time saved on every cut. If used daily, a well-adjusted hinge system can be more practical than repeatedly clamping the guide rail by hand.
