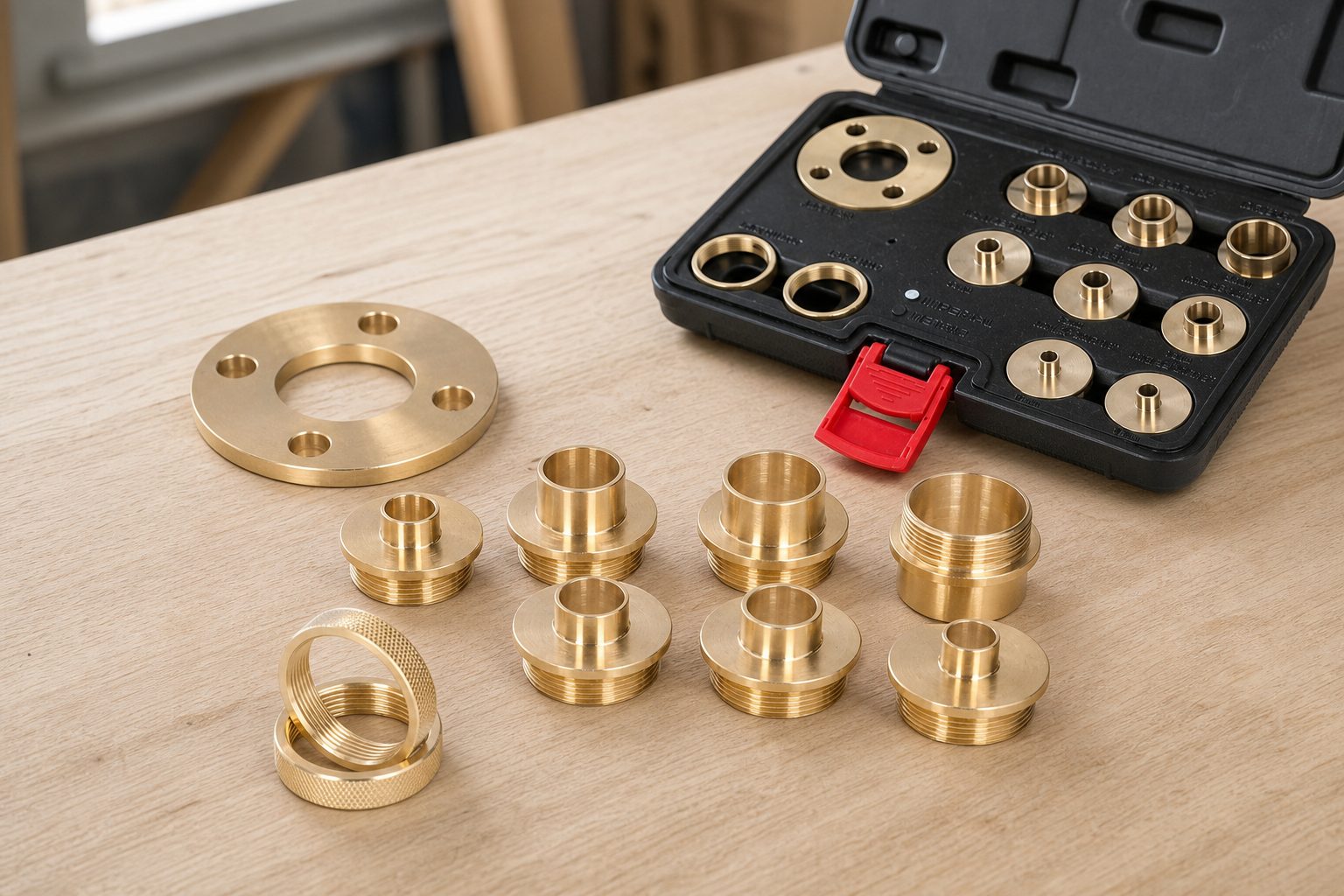

11-Piece Brass Router Guide Bushing Set Makes Precise Template Routing Easier, but Porter-Cable Compatibility Should Be Checked

Brass router guide bushings are a simple woodworking system that lets you guide a router bit along a template without the cutting edge itself touching the template.

This 11-piece set uses the classic Porter-Cable style dimensions and includes guide bushings in several diameters, retaining nuts and, depending on the specific set, a centering or routing component.

With accessories like these, machining accuracy and compatibility with the router base are most important. This is not a universal standard that automatically fits every router.

How does a guide bushing work?

A guide bushing is mounted in the router base.

Its cylindrical nose extends below the base and rides against the edge of the template during use.

The router bit spins inside the bushing.

The resulting shape is therefore not an exact copy of the template opening—the offset between the bit and the bushing affects the result.

This offset must be taken into account when routing with a template.

Porter-Cable style is common, but not absolutely universal

This type of bushing uses dimensions referred to as Porter-Cable style.

Many routers support it directly or through a universal sub-base.

Some brands, however, use their own dimensions.

With Festool, Bosch, Makita or other systems, an adapter may be needed.

Independent user reports for a similar 11-piece set mention compatibility with Porter-Cable and selected Makita bases, for example, but not automatically with every Festool router without an adapter.

Brass has good properties for guide bushings

Brass is popular for template guides because it:

• does not rust like ordinary steel,
• has a smooth surface,
• is easy to machine,
• is relatively gentle on the template,
• has sufficient rigidity.

However, quality machining matters more than the material itself.

If a bushing is eccentric, the router bit will not follow the shape precisely.

Centering relative to the router bit is essential

After installing a bushing, check whether its opening is centered relative to the router spindle.

If the bushing is 0.5 mm off-center, the result may have a different offset depending on the direction of travel.

That is why professional practice uses a centering pin or cone.

If the set includes a centering component, it is worth using it whenever you change the base.

The template must be thicker than the nose projection

An independent review of a similar set points out a practical issue:

with a very thin template, the bushing nose may extend through the entire template and touch the workpiece.

This prevents proper guidance.

So, when working, you need to:

1. measure the length of the guide nose, 2. use a sufficiently thick template, 3. set the router depth so the bushing does not get in the way.

With 6 mm-thick plywood, some bushings may already be too long.

What are the different diameters for?

A smaller bushing is suitable for:

• small openings,
• detailed templates,
• fine ornaments.

A larger bushing:

• works better with large router bits,
• has a larger contact area,
• may be more stable with large templates.

The choice depends on the router bit diameter and the desired offset.

The offset is easy to calculate

If the guide bushing has an outside diameter of 16 mm and the router bit is 8 mm, the offset is:

(16 − 8) / 2 = 4 mm.

The template must therefore be offset by 4 mm from the desired edge of the finished cut.

This calculation is fundamental when making your own templates.

Repeatability is a major advantage

A guide bushing is especially useful when the same shape needs to be made repeatedly.

Uses include:

• mortises,
• hinge recesses,
• inlays,
• lettering,
• template openings,
• copying shapes,
• making multiple identical parts.

Without a bushing, you would need to use a bearing-guided router bit or another technique.

The bushing protects the template from the router bit

The cutting edge does not touch the template.

That is an advantage with templates made of MDF, acrylic or plywood.

A bearing-guided router bit can damage the edge of a template if there is a mistake or play. The bushing transfers contact through its smooth brass surface.

Independent reviews of the inexpensive set are surprisingly good

Users of this 11-piece set generally rate its workmanship very positively.

Commonly noted points include:

• precise machining,
• good packaging,
• smooth threads,
• good value for the price and number of bushings.

With inexpensive accessories, however, you should check the following after unpacking:

• burrs,
• concentricity,
• threads,
• nut flatness.

You do not need to use all 11 pieces at once

The set includes several diameters because different projects require different combinations.

In the workshop, users often find that they regularly use only 2–3 sizes, while the others remain as spares.

The advantage of a complete set is that the right size is already available for the next project.

Main features of the 11-piece set

Who is the set suitable for?

It makes the most sense for a woodworker who:

• works with templates,
• routs hinges or mortises,
• makes duplicate parts,
• has a compatible router base.

Is a brass guide bushing set worth it?

If your router supports the Porter-Cable standard, yes.

For relatively little money, it adds a system that is highly versatile for template work.

Correct centering and calculating the offset are most important. The bushing itself will not provide accuracy if it is installed incorrectly or the template is not designed for its dimensions.
