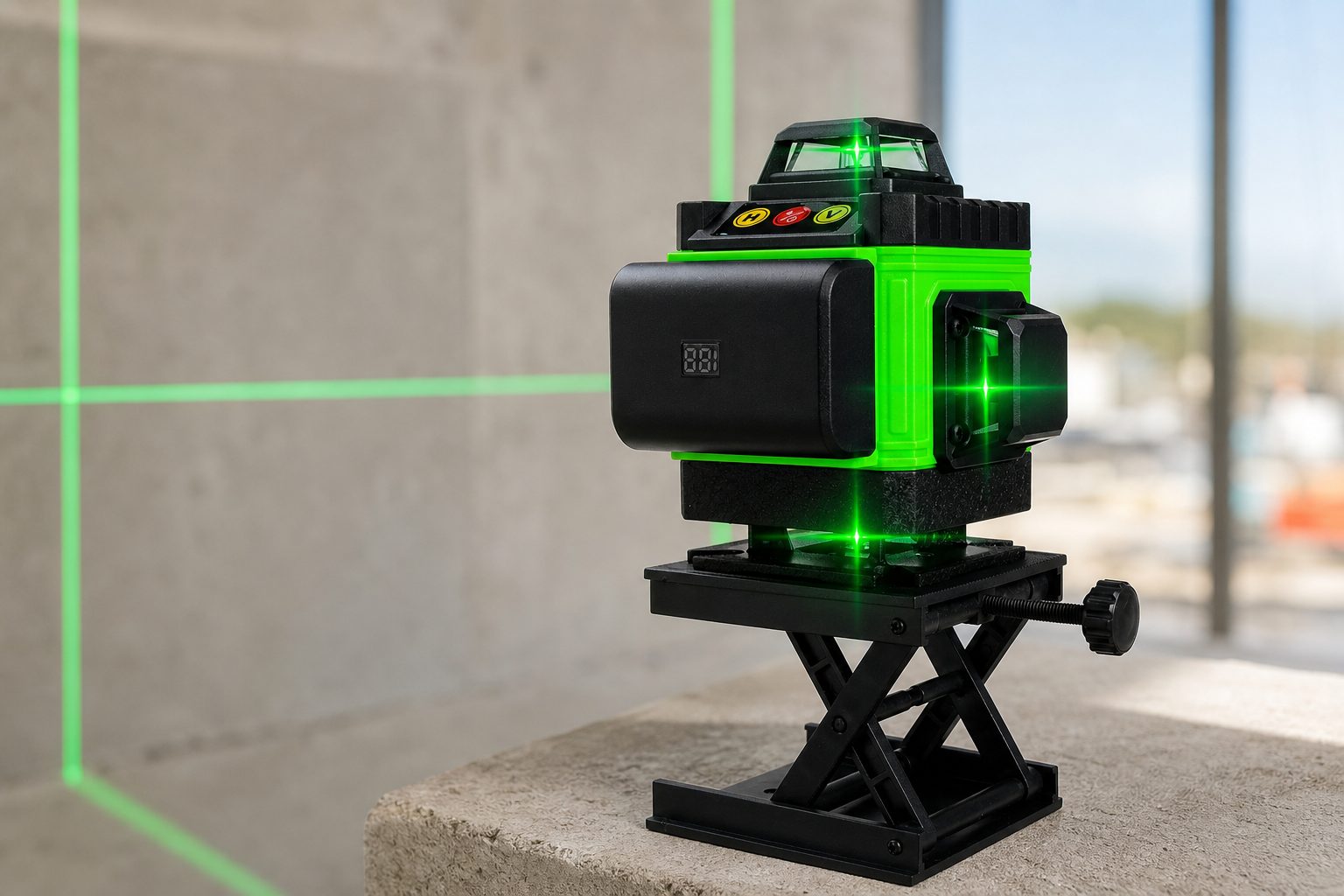

A 16-Line 4D Green Laser with 4×360° Projection Is Very Practical Indoors, but Cheap Models Hit Their Limits in Bright Sunlight

A 16-line 4D green laser is a self-leveling construction laser that uses four 360° planes to create a total of 16 visible lines. A typical configuration includes two horizontal and two vertical 360° projections.

This type of laser is suitable for:

• tiling,
• drywall,
• cabinets,
• shelves,
• suspended ceilings,
• electrical installations,
• furniture assembly.

However, with inexpensive generic 4D lasers, it is important not to focus only on the number of lines. Practical quality is determined mainly by accuracy, visibility, self-leveling stability, and the stand’s mechanics.

Why 4D and 16 lines?

One 360° laser plane appears visually as four “sides” around a room.

Four projection heads therefore produce the marketing designation “16 lines.”

The advantage is almost complete coverage of:

• the floor,
• the walls,
• the ceiling.

When installing a kitchen, for example, you can create all at once:

• a horizontal reference for cabinets,
• a vertical axis,
• a ceiling reference,
• a second vertical line at a 90° angle.

The green laser is easy to see indoors

The human eye is more sensitive to the green region of the spectrum than to red.

Therefore, at a similar optical output, a green line can appear brighter.

User reviews of inexpensive 16-line models often praise their visibility:

• in an apartment,
• in a workshop,
• in the shade,
• on indoor construction sites.

This is where this type of laser is especially useful.

Direct sunlight outdoors brings a major limitation

Verified user experiences with generic 4D green lasers are very consistent on this point:

in bright sunlight, the line is often very difficult to see or practically unusable.

One user who used the laser on a construction site said that it worked very well in the shade, but that the difference compared with an expensive professional system was pronounced in direct sunlight.

This is no surprise.

Sunlight is orders of magnitude more intense than indoor lighting.

A receiver matters more than glasses outdoors

Green glasses can increase visual contrast.

However, they do not automatically turn an inexpensive laser into a professional outdoor instrument.

For longer distances outdoors, a model that supports an electronic laser receiver/pulse mode is a better choice.

With an anonymous product, check whether that specific version supports this mode at all.

Self-leveling has a limited range

Generic 4D models often operate within a range of approximately ±3°.

If the body is tilted further, the device:

• flashes,
• beeps,
• or otherwise alerts the user.

Self-leveling does not mean that you can place the laser on any uneven surface.

It must first be approximately level.

Locked mode allows angled lines

Many 4D lasers allow the beams to be switched on outside self-leveling mode once the pendulum is locked.

This is useful for:

• staircases,
• angled decorations,
• angled installations.

However, in this mode, the line is not automatically horizontal or vertical.

The user sets the angle manually.

Accuracy matters more than the number of lines

There are both very inexpensive and expensive 16-line lasers on the market.

Professional models have clearly defined accuracy specifications, for example in mm/m.

For the anonymous model in this listing, there is no reliable, uniform calibration specification published by the manufacturer that can safely be attributed to every revision.

It is therefore a good idea to test the laser after purchase.

A simple at-home accuracy test

You can check the horizontal line as follows:

1. place the laser several meters from a wall, 2. mark the height of the line, 3. rotate the device 180° without changing its height, 4. check whether the line remains at the same point.

You can compare the vertical line with a plumb line.

If the deviation appears large over a few meters, return the laser or have it calibrated.

One or two batteries?

This particular offer is available in a 1/2 battery variant.

Two batteries are more practical on a construction site.

Use one while the other is charging.

Before ordering, check the package contents for the selected variant rather than relying only on the main photo.

The stand and accessories may be the weak point

User experiences with inexpensive 4D systems often praise the laser itself more than the accessories.

One review, for example, reported that the tripod was actually about 120 cm tall rather than the stated 150 cm.

This shows that you should treat individual accessories in a generic set with some caution.

Where does 4×360° make the most sense?

The greatest benefit is during complex installations:

tiling – planes on all walls,

kitchen – cabinets at the same height,

drywall – floor and ceiling at the same time,

electrical installation – sockets and switches in one line,

suspended ceiling – a horizontal plane around the room.

Main features of a generic 4D 16-line laser

Who is it suitable for?

It makes the most sense for:

• home renovators,
• tilers,
• installers,
• drywall contractors,
• indoor construction work.

Is an inexpensive 16-line 4D laser worth it?

For indoor use, the price-to-features ratio can be excellent.

Real user experiences show that the green lines are very practical indoors.

However, for professional outdoor construction in direct sunlight, an inexpensive laser without a quality receiver is not equivalent to an expensive construction system.

It is best viewed as a highly versatile indoor layout tool, not as a universal replacement for a professional rotary laser.
